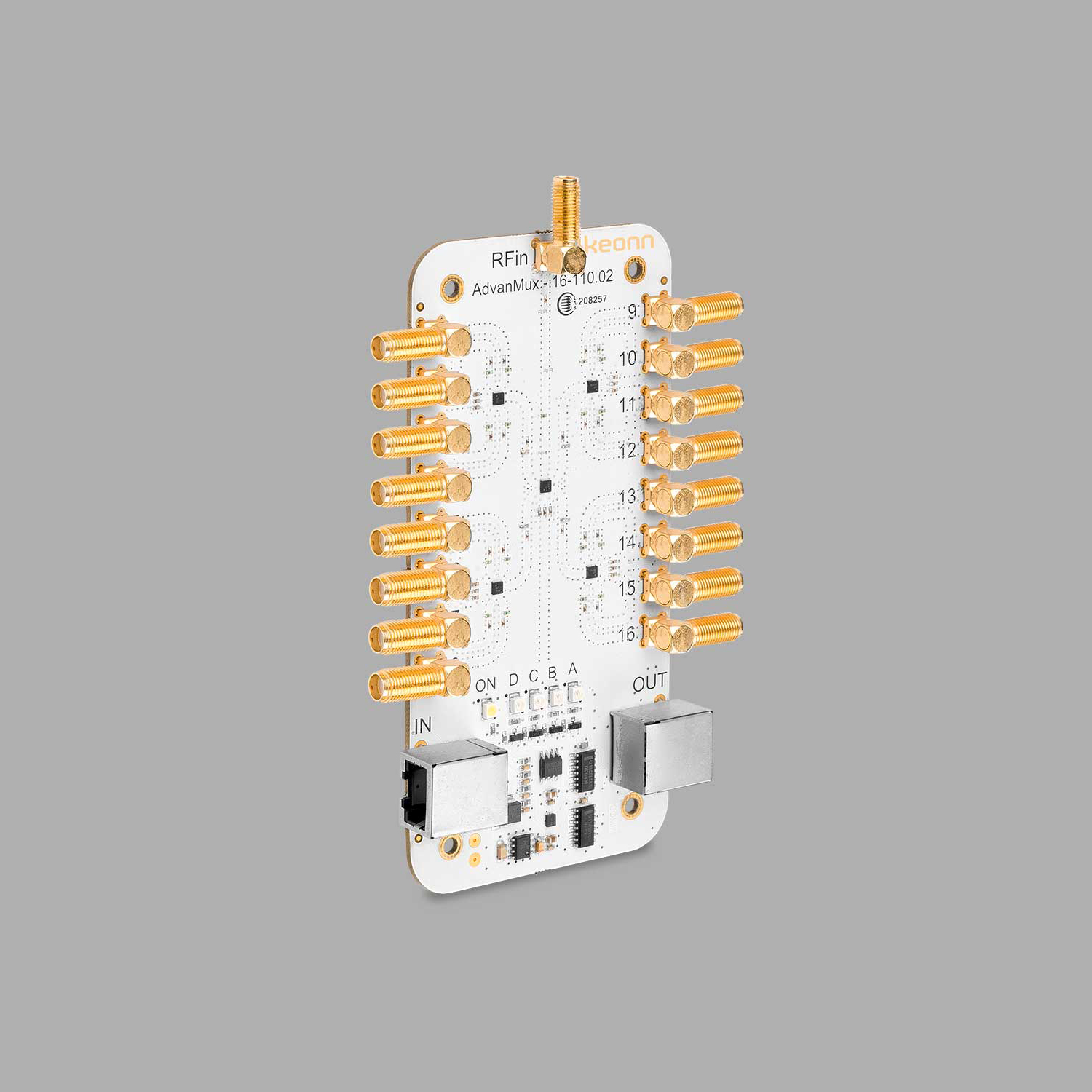

Keonn AdvanMux-16 RFID Multiplexer

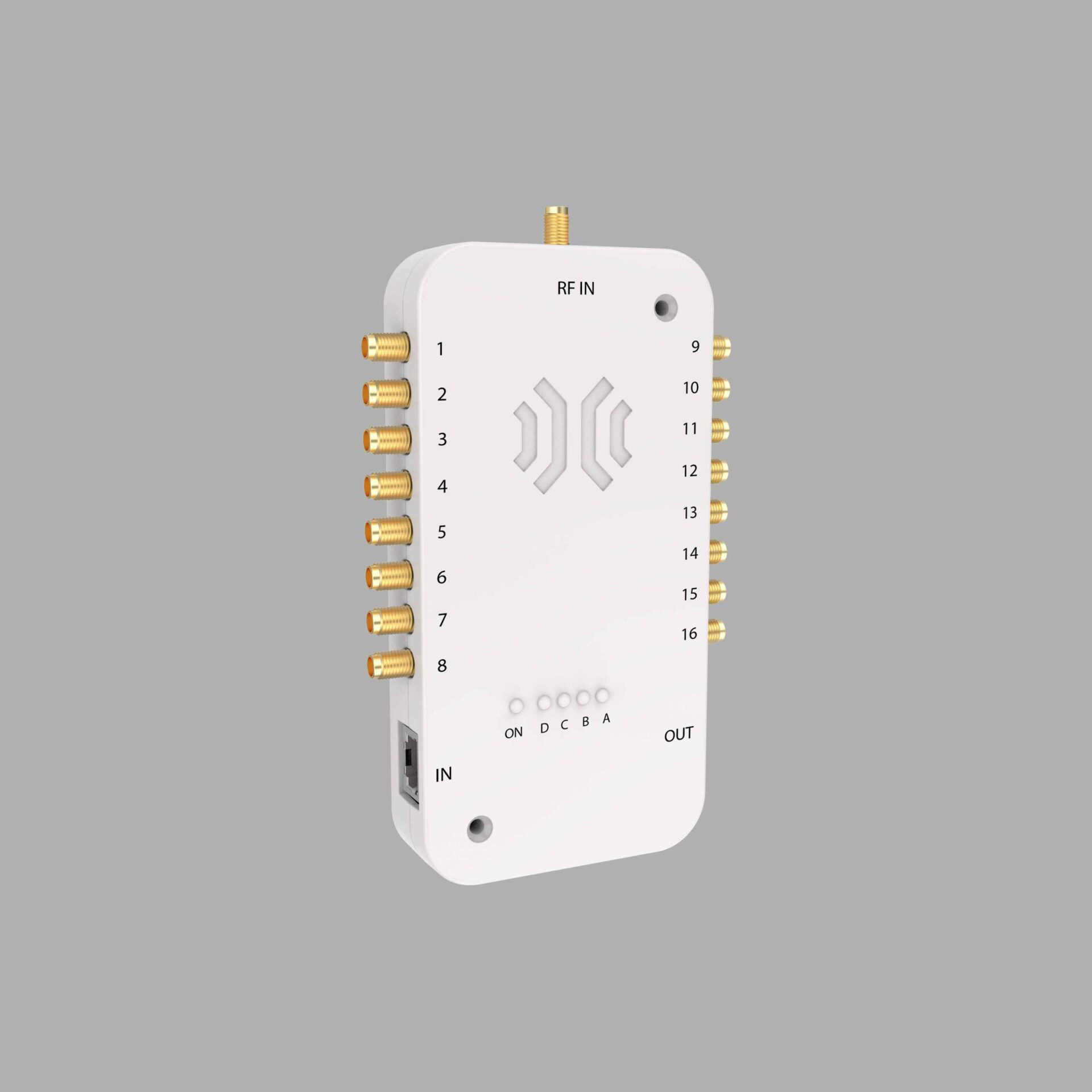

Keonn AdvanMux-16 RFID Multiplexer - Image 2

Keonn AdvanMux-16 RFID Multiplexer

₺0,00

Keonn AdvanMux-16is a high-performance 16-port RFID multiplexer. It increases the number of antennas that can be connected to each reader port by 16 times and is compatible with most RFID reader models. It can be connected directly via an Ethernet cable to the AdvanReader-100 and 150. Using multiple levels of AdvanMux-16, up to 1024 antennas can be connected to the same reader.


📄 Datasheet
SKU: keonn-advanmux-16-rfid-multiplexer Category: Brand:
Product NameKeonn AdvanMux-16 RFID Multiplexer
Number of Ports16
RF Frequency860 – 950 MHz
RF Connectors1 giriş + 16 çıkış SMA dişi
Power Source5 V DC (Pin 4 or 5) or 5-48 V DC
Dimensions / Weight144×74×23 mm / 175 g (with case)
Operating Temperature-30°C ~ +55°C
Brand

Technical Specifications:

  • RF Frequency 860 – 950 MHz
  • Number of Ports: 16
  • Insertion Loss: <1.4 dB (typ. 1.2 dB)
  • Insulation: >35 dB
  • Return Loss: >19.5 dB (typ. 22 dB)
  • Maximum Input Power: 33 dBm
  • Switching Duration: <15 µs
  • RF Connectors: 1 giriş + 16 çıkış SMA 50 ohm dişi
  • Control / Power Connection: 2 x RJ45
  • Power Source: 5 V DC (Pin 4 or 5) or 5-48 V DC
  • Current Consumption: <12 mA
  • Digital Inputs: 0V/5V TTL / 3V TTL or open collector
  • ESD Protection: RF portları >2 kV, veri portları >8 kV
  • Dimensions 144×74×23 mm (with case), 137×75×17 mm (without case)
  • Weight 175 g (with case), 107 g (without case)
  • Operating Temperature -30°C ~ +55°C
  • Storage Temperature: -35°C ~ +85°C

Areas of Use:

  • Applications requiring more than 16 antennas in RFID systems
  • Smart shelving and cabinet systems
  • Smart surfaces
  • RFID portals and tunnels
  • General RFID applications
