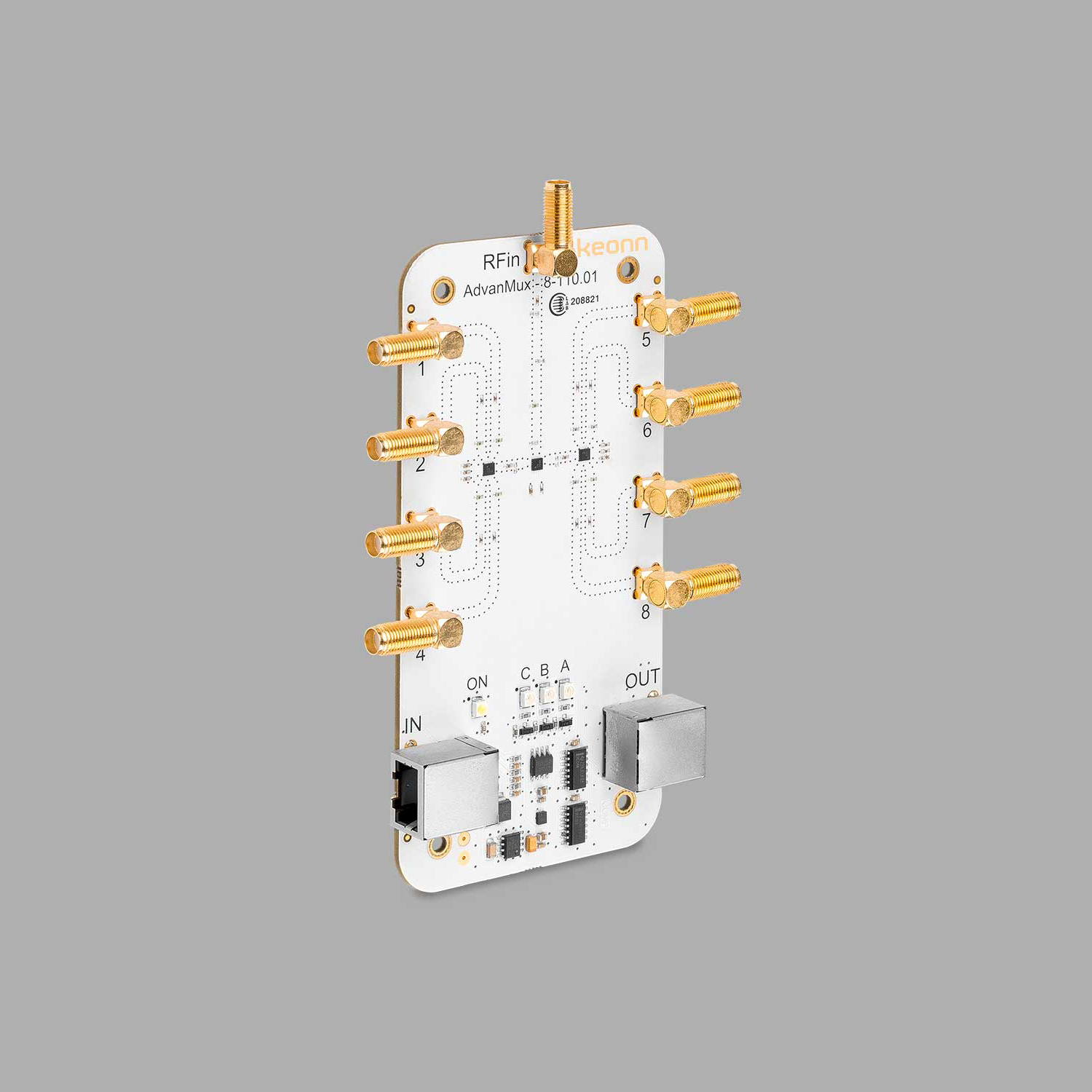

Keonn AdvanMux-8 RFID Multiplexer

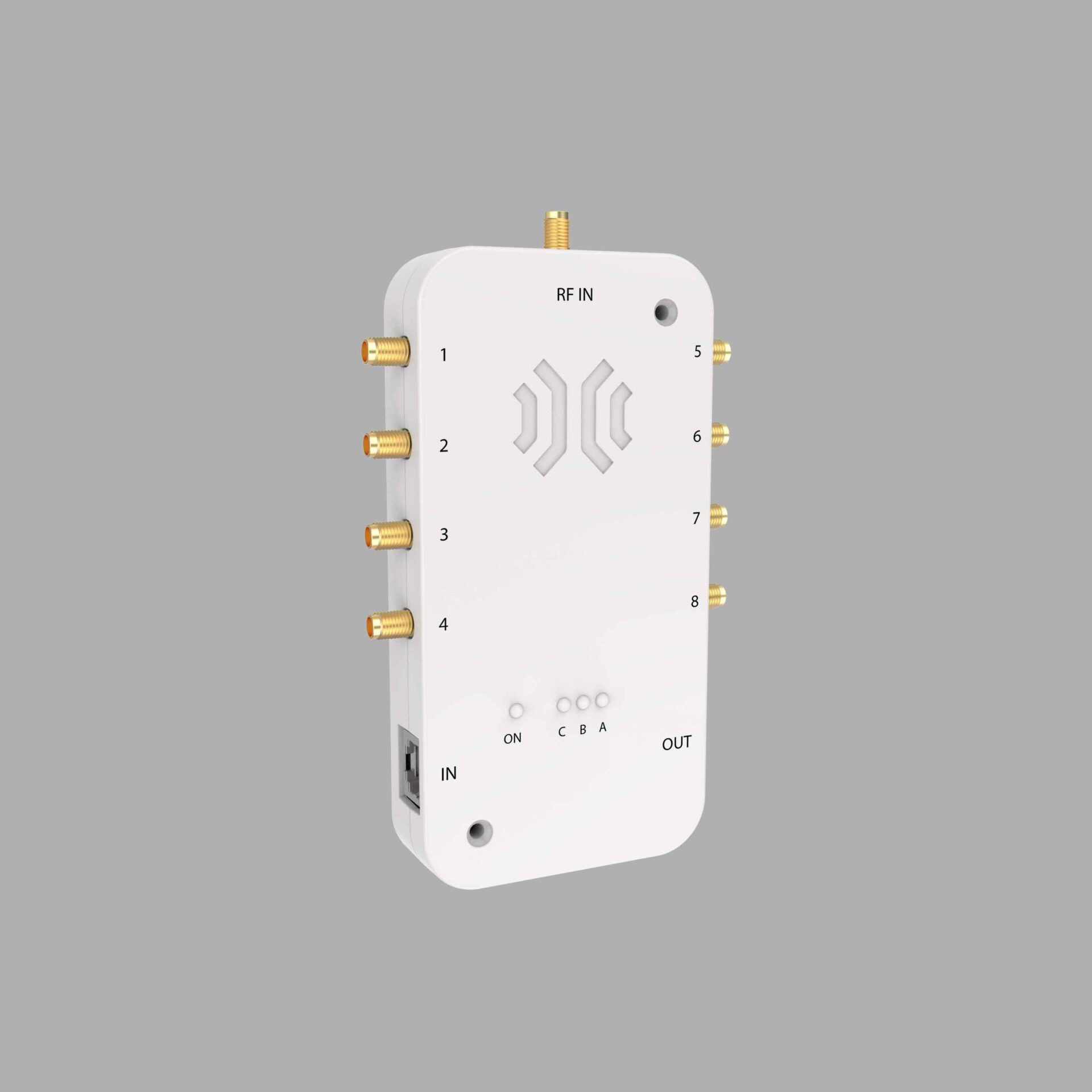

Keonn AdvanMux-8 RFID Multiplexer - Image 2

Keonn AdvanMux-8 RFID Multiplexer

₺0,00

Keonn AdvanMux-8is an 8-port high-performance RFID multiplexer. It increases the number of antennas that can be connected to each reader port by 8 times and is compatible with most RFID reader models. It can be connected directly via an Ethernet cable to the AdvanReader-100 and 150.


📄 Datasheet
SKU: keonn-advanmux-8-rfid-multiplexer Category: Brand:
Product NameKeonn AdvanMux-8 RFID Multiplexer
Number of Ports8
RF Frequency860 – 950 MHz
RF Connectors1 input + 8 outputs SMA female
Power Source5 V DC (Pin 6) veya 5-48 V DC (Pin 4&5)
Dimensions / Weight144×74×23 mm / 140 g (with case)
Operating Temperature-30°C ~ +55°C
Brand

Technical Specifications:

  • RF Frequency 860 – 950 MHz
  • Number of Ports: 8
  • Insertion Loss: <1.4 dB (typ. 1.2 dB)
  • Insulation: >35 dB
  • Return Loss: >22 dB (typ. 25 dB)
  • Maximum Input Power: 33 dBm
  • Switching Duration: <15 µs
  • RF Connectors: 1 giriş ve 8 çıkış SMA 50 ohm dişi
  • Control / Power Connection: 2 x RJ45
  • Power Source: 5 V DC (Pin 6) veya 5-48 V DC (Pin 4&5)
  • Current Consumption: <12 mA
  • Digital Inputs: 0V/5V TTL / 3V TTL or open collector
  • ESD Protection: RF portları >1 kV, veri portları >8 kV
  • Dimensions 144×74×23 mm (with case), 150×92×25 mm (without case)
  • Weight 140 g (with case), 77 g (without case)
  • Operating Temperature -30°C ~ +55°C
  • Storage Temperature: -35°C ~ +85°C

Areas of Use:

  • RFID sistemlerinde 8’den fazla anten ihtiyacı olan uygulamalar
  • Smart shelving and cabinet systems
  • Smart surfaces
  • RFID portals and tunnels
  • General RFID applications
